1. Project Overview

Client	Advertising Agency
Project Type	IT & Network Infrastructure — New Office Setup
Scope	Network, Surveillance (CCTV), Audio/Visual (AV), and Workstation Connectivity
Internet Services	Jio Gigabit Fiber + Airtel Gigabit Fiber (Dual WAN Load Balancing)
Deployment Scale	Full Office — All Workstations, Conference Rooms, Common Areas
Project Status	Completed — Fully Operational

Our Client required a robust, high-performance IT infrastructure for their brand-new office. The engagement covered the complete end-to-end deployment — from structured network cabling and enterprise-grade switching to wireless access, internet redundancy, IP surveillance, and office-wide audio — all centrally managed from a single unified controller platform.

2. Client Challenges & Requirements

Prior to the deployment, the following key requirements and challenges were identified:

• No existing network infrastructure — complete greenfield deployment required from the ground up.
• All workstations needed dedicated Gigabit Ethernet ports to support high-bandwidth creative production tasks including video editing, large file transfers, and cloud collaboration.
• Reliable, high-speed internet was mission-critical for an advertising agency with cloud-heavy workflows and video conferencing demands.
• Single internet connection posed a business continuity risk; dual-ISP redundancy with seamless failover was essential.
• Wireless coverage had to be seamless and high-capacity across the entire office footprint, including cabins, open-plan areas, meeting rooms, and reception.
• Comprehensive IP-based surveillance was required for physical security across all zones.
• Background audio through ceiling speakers for a professional office ambience and announcement capability.
• Entire system needed to be centrally managed to reduce IT overhead and simplify ongoing administration.

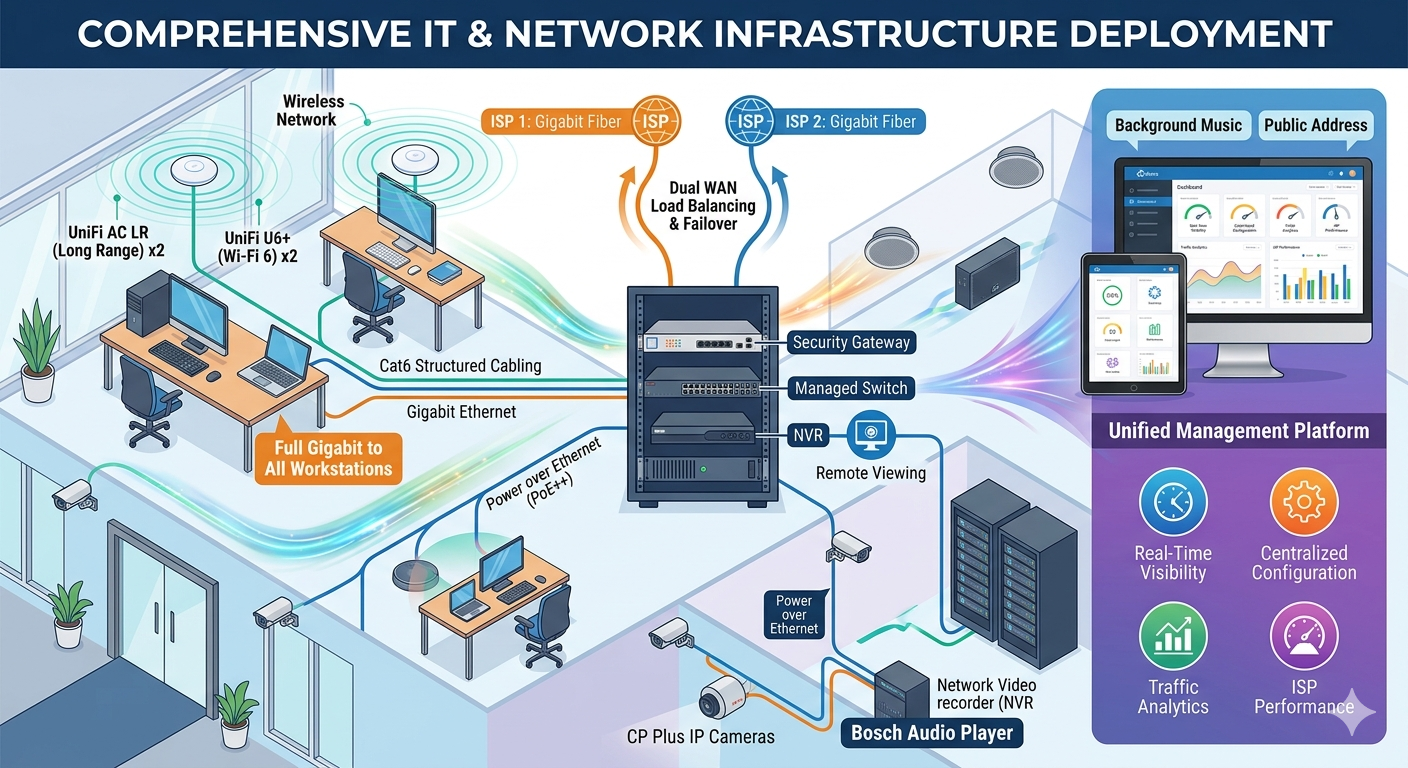

3. Solution Architecture

The solution was architected around the Ubiquiti UniFi ecosystem at its core, providing a tightly integrated, software-defined network environment. Supporting systems for surveillance and audio were layered on top of this foundation.

3.1 Gateway & Routing — UniFi Gateway Ultra

The UniFi Gateway Ultra was deployed as the primary network security gateway and router. It serves as the intelligent edge device, managing all routing, firewall policies, and dual-WAN connectivity.

• Dual WAN ports configured to simultaneously utilise Jio Gigabit Fiber and Airtel Gigabit Fiber connections.
• Load balancing mode distributes outbound traffic intelligently across both ISPs for maximum throughput and efficiency.
• Automatic failover ensures zero disruption in the event of a single ISP outage — critical for live campaigns and client presentations.
• Integrated deep packet inspection (DPI), threat management, and firewall rules configured for office security policy compliance.
• Full integration with UniFi Network Controller for centralised management of routing tables, VLANs, and traffic policies.

3.2 Core Switching — TP-Link Gigabit PoE++ Switch

A TP-Link Gigabit PoE++ managed switch was deployed as the core distribution layer, providing the backbone for both data and power delivery across the office.

• Gigabit Ethernet on all ports ensures maximum bandwidth availability to every connected device and workstation.
• PoE++ (IEEE 802.3bt) capability delivers sufficient power to PoE access points, IP cameras, and other powered devices without requiring separate power adapters.
• VLAN segmentation implemented to logically isolate workstation traffic, wireless traffic, surveillance traffic, and guest networks.
• Uplinked to the UniFi Gateway Ultra via Gigabit for full-bandwidth internet and inter-VLAN routing.

3.3 Wireless Network — UniFi AC LR x2 & UniFi U6+ x2

Four access points were strategically deployed to ensure complete, high-performance wireless coverage across every area of the office.

• UniFi AC LR (Long Range) x2: Dual-band 802.11ac access points with extended range antennas, ideal for covering larger open areas and providing reliable connectivity at distance. Deployed in zones with higher square footage or open-plan layouts.
• UniFi U6+ x2: Wi-Fi 6 (802.11ax) access points providing next-generation wireless performance. Wi-Fi 6 delivers significantly higher throughput, improved capacity for multiple simultaneous clients, and lower latency — ideal for conference rooms and high-density usage areas.
• All four APs operate in a unified wireless mesh managed by the UniFi controller, enabling seamless roaming with a single SSID across the entire office.
• Band steering and airtime fairness enabled for optimal client distribution across 2.4 GHz and 5 GHz bands.
• Guest SSID isolated on a separate VLAN with internet-only access, protecting the corporate network.

3.4 Workstation Connectivity — Structured Cabling

All workstations were provisioned with dedicated Gigabit Ethernet outlet drops, ensuring that every desktop has a direct, high-bandwidth wired connection to the core switch.

• Cat6 structured cabling run to all workstation positions, terminated at wall-mounted data outlets.
• Each data outlet patched back to the TP-Link PoE++ switch via a patch panel, creating a clean, manageable cabling infrastructure.
• Gigabit speeds at every workstation ensure that bandwidth-intensive tasks — video rendering, large asset uploads/downloads, and cloud sync — are never constrained by network throughput.
• Eliminates wireless dependency for desktop workstations, freeing up wireless capacity for laptops and mobile devices.

3.5 IP Surveillance — CP Plus IP Cameras & NVR

A comprehensive IP surveillance system was deployed using CP Plus equipment to provide complete visual coverage of the office premises.

• CP Plus IP cameras installed at strategic positions covering entry/exit points, reception, server/equipment room, main office floor, cabins, and common areas.
• All cameras powered via the PoE++ switch — eliminating the need for separate power supplies at each camera location.
• Cameras connected on a dedicated VLAN, isolated from the primary office network for security and traffic management.
• CP Plus NVR (Network Video Recorder) deployed for continuous local recording with configurable retention policies.
• NVR accessible remotely for authorised personnel via secure VPN tunnel through the UniFi Gateway, enabling off-site monitoring when required.
• High-definition recording configured for all cameras with motion-triggered alerts.

3.6 Audio System — Bosch Audio Player & Ceiling Speakers

A professional-grade background audio and public address system was installed throughout the office using Bosch audio equipment.

• Bosch Audio Player deployed as the central audio source and zone controller, providing reliable and clear audio signal distribution.
• Ceiling speakers installed across all office zones — open work areas, corridors, reception, and meeting rooms — for uniform audio coverage.
• System supports background music playback for a professional and productive office ambience.
• Public address capability allows announcements to be broadcast across all zones simultaneously.
• Audio cabling neatly integrated alongside network cabling infrastructure during the structured cabling phase.

3.7 Unified Management — UniFi Network Controller

The entire network, wireless, and gateway infrastructure is managed from a single pane of glass through the UniFi Security Gateway Controller (UniFi Network Application).

• Provides real-time visibility into network topology, device status, client sessions, and bandwidth utilisation.
• Centralised configuration of firewall rules, VLAN policies, QoS settings, and wireless radio parameters.
• Automated alerts and notifications for device offline events, unusual traffic patterns, and ISP failover events.
• Historical analytics for traffic trends, client counts, and ISP performance comparison (Jio vs. Airtel).
• Controller accessible securely via web browser and mobile app for remote management.
• Simplifies day-to-day IT administration with a unified, intuitive interface — reducing dependency on on-site IT support.

4. Equipment Summary

Category	Equipment / Solution	Purpose
Gateway / Router	Ubiquiti UniFi Gateway Ultra	Dual-WAN routing, firewall, load balancing
Core Switch	TP-Link Gigabit PoE++ Switch	LAN switching, PoE power delivery
Wireless AP	UniFi AC LR x 2 Old Devices Uaed	Long-range Wi-Fi 5 coverage
Wireless AP	UniFi U6+ x 2 New Devices Used for Dense Areas	Wi-Fi 6 high-density coverage
Internet (ISP 1)	Jio Gigabit Fiber	Primary WAN — GIGA bandwidth
Internet (ISP 2)	Airtel Gigabit Fiber	Secondary WAN — GIGA bandwidth
IP Cameras	CP Plus IP Cameras	HD surveillance across all zones
NVR	CP Plus NVR	Local continuous video recording
Audio Controller	Bosch Audio Player	Background music & PA system
Speakers	Ceiling Speakers (Office-wide)	Uniform audio coverage
Controller	UniFi Network Application	Centralised network management
Cabling	Cat6 Structured Cabling	Gigabit Ethernet to all workstations

5. Results & Outcomes

Upon completion of the deployment, Our Client gained a modern, enterprise-class IT infrastructure that fully meets the demands of a fast-paced advertising environment.

• 100% Gigabit Ethernet coverage at every workstation — eliminating all network bottlenecks for creative and production workflows.
• Dual-ISP load balancing delivers effectively doubled internet bandwidth under normal operations, while automatic failover ensures business continuity if either Jio or Airtel experiences an outage.
• Seamless Wi-Fi roaming across all four access points with a single unified SSID — no manual switching required as users move through the office.
• Wi-Fi 6 capability on the U6+ APs provides future-ready wireless performance for next-generation devices.
• Full HD surveillance across all critical areas with remote viewing capability for management.
• Professional-quality background audio throughout the office enhances workplace ambience and enables office-wide announcements.
• Single-pane-of-glass management through the UniFi Controller dramatically simplifies ongoing IT administration and troubleshooting.
• VLAN segmentation ensures clean network isolation between corporate data, wireless clients, surveillance traffic, and guest users — enhancing both security and performance.

6. Technical Highlights

WAN Configuration	Dual WAN — Jio Gigabit + Airtel Gigabit | Load Balancing + Failover
LAN Speed	Full Gigabit (1 Gbps) to all workstations and network devices
Wireless Standards	Wi-Fi 5 (802.11ac) via UniFi AC LR + Wi-Fi 6 (802.11ax) via UniFi U6+
Network Segmentation	VLANs for Corporate, Wireless, Surveillance, Guest
Surveillance	CP Plus IP Cameras + NVR — HD, continuous recording, remote access
Audio	Bosch Audio Player + ceiling speakers — office-wide coverage
Power Delivery	PoE++ switch — powers APs and cameras without separate adapters
Management Platform	UniFi Network Controller — unified web/app-based management
Security	Integrated firewall, DPI, threat management via UniFi Gateway Ultra

7. Conclusion

The complete IT infrastructure deployment for our client demonstrates the effectiveness of a well-planned, integrated technology ecosystem for a modern creative office environment.

By centering the solution on the UniFi platform and complementing it with enterprise-grade PoE switching, professional IP surveillance, and a Bosch audio system, the deployment delivers the performance, reliability, and manageability required by a growing advertising agency.

The dual-ISP load balancing setup with Jio and Airtel Gigabit connections ensures that internet connectivity is never the limiting factor in day-to-day operations, while the centralised UniFi management controller gives the team full, real-time visibility and control over the entire network estate from a single, intuitive interface. Client now operates on an infrastructure foundation built to scale — ready to accommodate organisational growth, additional workstations, and evolving technology requirements with minimal disruption.
